HYV CONNECTOR 5.0mm Pitch Disconnectable Crimp Style
  • Features
  • Specification
  • Downloads
  • Samples

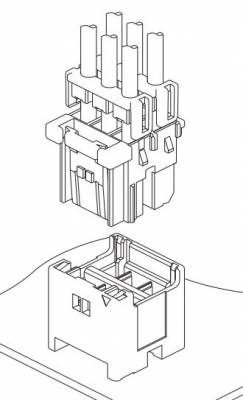

This HYV connector is 5.0mm pitch wire-to-board type connector and has the mechanism to suppress the incomplete mating in mating operation.

Box shaped contact to prevent the influence by external forces, thereby increasing safety of large current circuit connection.

4 type key patterns prevents mismatching when using multiple pieces connector in the same model.


  • Keying structure


  • Secure locking structure


  • Inertia lock structure


  • Retainer mountable type


  • Header for use specifically with resin coated ('potted') PC board


  • Standards

UL Recognised E60389

CSA Certified LR20812

  • RoHS Compliant


01 - Connection Type: Printed Circuit Board Connectors
02 - Product Type: Wire to Board Crimp style Connectors
03 - Pitch / Style: 5.00mm
04 - Current rating: 10A AC,DC
05 - Voltage rating: 300V AC,DC
06 - Temperature range: -30 to +105 Degrees Celsius
07 - Available number of circuits: 2, 3, 4, 6
13 - PCB Mount Style: Through-hole Technology (THT)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

Contact Us

Additional Information

This product series has some additional information related to it that you can download from the list below.

Catalogue Page Link to 3D Data
