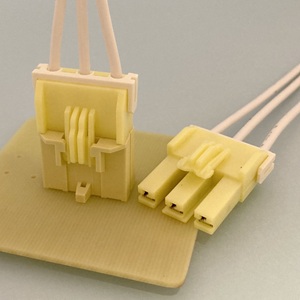

This is a 6.5mm pitch, 3 circuit wire to board connector capable of carrying up to 11A, featuring housing made from Glow Wire test compliant material.

 ·         High-current capacity

        Maximum current capacity of 11A (when using AWG #16)

 ·         Glow wire compliant

        Meets the GWT 850^oC standard, ensuring enhanced safety and reliability. Demonstrates improved protection and compliance in a wide range of household               appliances.

         ·         Housing lance system

       Ensures smooth contact insertion to achieve a reliable connection.

         ·          Retainer

       Optional retainers enhance connection reliability by preventing incomplete insertion or accidental contact disengagement.

 ·        Secure lock mechanism

        Featuring a secure inner locking mechanism that minimises disengagement caused by tension and torsion in wire routing.

  ·        Polarisation boss

        Header comes with polarisation boss to prevent incorrect mounting on the board.

·         RoHS Compliant
