RHUa_1

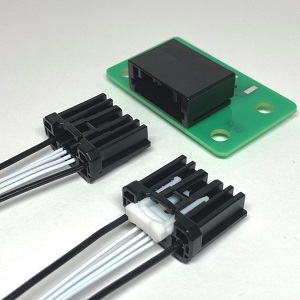

RHU CONNECTOR 2.2mm Pitch Disconnectable Crimp Style
  • Features
  • Specification
  • Downloads
  • Samples

Unsealed hybrid connector using 0.64 terminal and 2.8 terminal for automotive applications.



·         Unsealed Hybrid Connector

          Hybrid structures of using 0.64 terminal and 2.8 terminal.



·         CPA (Connector Position Assurance)

          Optionally selectable with/without CPA



·         High Reliability

         Using the tried-and-true terminal and providing retainer ensures high reliability.



 ·         RoHS Compliant

01 - Connection Type: Automotive
02 - Product Type: Wire to Board Crimp style Connectors
03 - Pitch / Style: 2.20mm
04 - Current rating: 25A AC,DC
06 - Temperature range: -40 to +105 Degrees Celsius
07 - Available number of circuits: 6
13 - PCB Mount Style: Through-hole Technology (THT)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

Contact Us

Additional Information

This product series has some additional information related to it that you can download from the list below.

1) Catalogue Page 2) 2D Drawing 3) 3D Model
