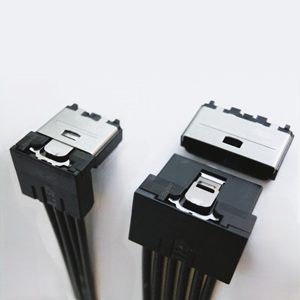

ULH Series is a 2.0mm pitch space saving wire-to-board connector. Manufactured using Halogen Free Polyamide (with a UL94V-0 rating) and stainless steel (SUS), this small yet robust connector is ideal for compact application environments
Initially developed for LED Lighting units in automotive applications, this connector has a low profile design that allows the wire to be routed vertically down away from the PCB.
The ULH Connector is available in a number of circuit variations (4 and 6), with a current rating of 5Amps, 100V AC/DC Voltage and operating temperature range of -40OC to +125OC.
Applications
- Automotive
- General equipment for transportation and industrial systems, such as;
- Lighting
- Power Inverter Unit (PIU)
- Electronic control units
- Battery Management System (BMS)
- Air Conditioning
# These are a representation of some of the applications and uses of this product, and is by no means definitive.
Connector variation
· The connector is available in five variations;
o ULH Connector (Standard Type)
o ULH Connector (Right Angle Up Type)
o ULH Connector (eCPA Type)
Side entry design
- Aids and simplifies wire routing from PCB.
Metal secure locking feature
- The utilisation of a mental lock provide a robust locking feature that prevents accidental disconnection due to restricted wire routing or high environmental vibration.
Robust contact design
- The crimp terminal design incorporates a 3 point contact structure, which offers a high degree of interface performance under conditions of vibration, distortion, low voltage or low current.
PCB mounting technology
- Headers are suitable for Surface Mount (SMT) PCB mounting.
Application equipment
- Hand, Semi-Automatic and Fully Automatic assembly devices are available.
Standards
- USCAR
- IEC61249-2-21
- LV214
- Vibration resistance LV214 PG17 Severity 2
